Create your own design.

Tips to get your CAD files ready & values you might know about your design.

It's dangerous to go alone! Take this (advice).

Some considerations to get your plates perfectly cut at Lvl.99

kerf keyboards mechanical

Kerf who?

Send us the exactly geometry you want. No offset, no gaps, set your Kerf to 0.0mm.

material keyboards mechanical

Materials

Premium-quality materials and finishes. All classic thicknesses for keyboard plates available.

file dxf keyboards mechanical

Easy peasy

All vector file formats accepted. One part per file. Up to 1000 x 1000 mm work area.

Size matters.

Upload a DXF or DWG file with all lines ungroup and the configurartor will automatically detect the main values of your parts.
Your file is not in DXF format? No problem. You can also fill the values manually.

Keyboard

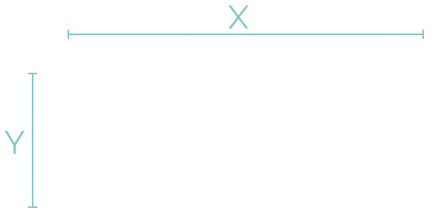

Maximum sizes

A quick way to do this is to draw a rectangular around your plate. This value have to be in millimeters.

Keyboard

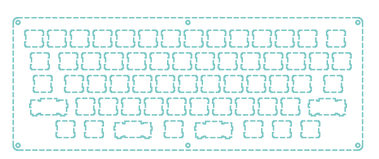

Total Path Length

Total length of all the paths (lines) of your piece combined. This value have to be in millimeters.

Any doubt about your keyboard file measurements, materials or finishes? Contact us 🙂

Need help with your files?
