ALUMINIUM ONLINE LASER CUTTING

Aluminium

Technical designation

AlMg3, EN AW 5754 H111, 3.3535

Available thicknesses

vinetado materiales 1.0mm vinetado materiales 1.2mm vinetado materiales 1.5mm vinetado materiales 2.0mm
vinetado materiales 3.0mm vinetado materiales 4.0mm vinetado materiales 5.0mm vinetado materiales 6.0mm
vinetado materiales 1.0mm vinetado materiales 1.2mm vinetado materiales 1.5mm
vinetado materiales 2.0mm vinetado materiales 3.0mm vinetado materiales 4.0mm
vinetado materiales 5.0mm vinetado materiales 6.0mm
vinetado materiales 1.0mm vinetado materiales 1.2mm
vinetado materiales 1.5mm vinetado materiales 2.0mm
vinetado materiales 3.0mm vinetado materiales 4.0mm
vinetado materiales 5.0mm vinetado materiales 6.0mm

Alloys

Aluminium 5754

Finishes

Unfinished, Vibrated, Sandblasted and Brushed.

Main features

  • Light weight material, density: 2.7 g/cm3

  • Ease of forming and good alloy for welding operations.

  • Good corrosion resistance.

  • Surface finish and thickness tolerance according to EN 485-4

Appearance of Aluminium Finishes

Aluminio 7574

Aluminium 5754 - Unfinished

Unfinished factory-source finish. Front side can contain smooth scratches. Back Side can contain burrs and scratches from cutting process. Back-Side deburring process available in part configurator.
Aluminio 5754 Vibrado

Aluminium 5754 - Vibrated

Unfinished variant with vibration process, it is applied on both sides of the part with a smooth grain.

Aluminio 5754 Arenado

Aluminium 5754 - SandBlasted

Unfinished variant with sandblasting process, it is applied on both sides of the part. We use glass microspheres as abrasive.

Aluminio 5754 Cepillado Premium

Aluminium 5754 - Brushed Premium

Manually brushed finish with a high end aesthetic result. Finish applied in the face shown in your files. Horizontal brushed alignment.*

Brushed Finish Considerations *

The Brushed Finish will always be present on the visible side of your file. If you select the extra Aesthetic Brushing, the finish will be present on both sides.

The brushing alignment will always be horizontal, according to the position of your documents.

Laser Cutting Finishing Considerations

Aluminium

– Light as a feather. Ready to fly.

The metal known for its low density and remarkable mechanical qualities.

We have the 5754 alloy, with superior mechanical performance and easier to be welded, bent and machined than other aluminium alloys.

In the vibrated variant we polish both faces with soft abrasive discs for an industrial and homogeneous finish.

For the Sand Blasting finish, we operate at low pressure with glass micro spheres sand without affecting the original shape of your part, leaving the surface clean and free of imperfections.

For a more aesthetic part we recommend the Brushed finish. This finish is present on the front face of your file. If you select the extra aesthetic finish, your part will be polished after being cut on both sides.

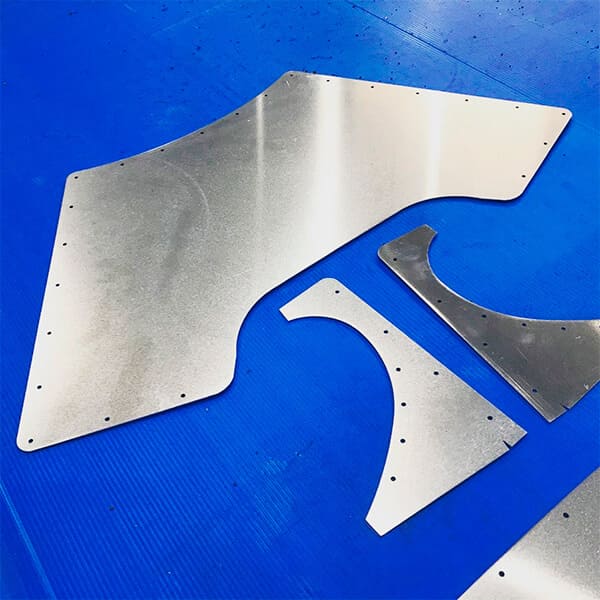

Aluminum has a wide range of applications: parts for high-performance vehicles, parts for aircraft, general supplies for the industry, covers for machinery, signage, decorative letters, maker projects (DIY) and all kinds of applications where parts with low weight and ease to work are needed.

Order Your Aluminium Parts Online Now

Configurador online corte láser

Instant price and online configurator. Your Parts in 72h.
